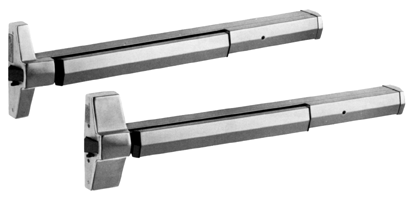

MVM Exit Devices

	For metal stile glass doors. Device operates in conjunction with 4710 deadlatch. Accepts any standard mortise cylinder with A/R cam. Furnished with strike.

How to Specify Series 8400

84[FacePlate Finish][Face Shape]-[Backset][Handing][PushBar Finish][Door Opening]-[Finish]

Example: 8412-27136-US3

FacePlate Finish
1	628 Aluminum
2	313 "Bronze"
3	335 Black

Face Shape
0	Flat
1	Radius
4	Radius W/W/Seal
2	Bevel

Backset
2	31/32"
3	1 1/8"
4	1 1/2"

Handing
7	Right Hand Reverse
8	Left Hand Reverse

PushBar Finish
1	628 Aluminum
2	313 "Bronze"
3	335 Black
0	US Finish

Door Opening Width
30	Inches
36	Inches
42	Inches
48	Inches

Add Dash NO. For US Finish

US3	Bright Brass	US10B	Oilrub Bronze
US4	Satin Brass	US32	Bright Stainless
US9	Bright Bronze	US32D	Satin Stainless
US10	Satin Bronze	SP	Special

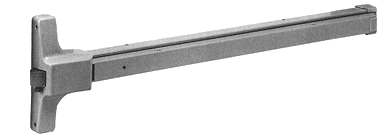

8800 Rim Exit Device

For metal stile glass doors.
Single point locking.
Furnished with strike.
Standard stirke for 8800.

How to Specify Series 8700 or 8800

8[Series]0[PushBar Finish]-[Door Opening width]-[US Finish]

Example: 8703-42-US3

Series
7	For Wood or Hollow Metal Door
8	For Narrow Stile Glass Door

PushBar Finish
1	628 Aluminum
2	313 "Bronze"
3	335 Black
0	US Finish

Door Opening Width
30	Inches
36	Inches
42	Inches
48	Inches

Add Dash NO. For US Finish

US3	Bright Barss	US10B	Oilrub Bronze
US4	Satin Brass	US32	Bright Stainless
US9	Bright Bronze	US32D	Satin Stainless
US10	Satin Bronze	SP	Special

3017 Lever Trim

	Economical tubular lever trim. Key locks or unlocks lever.

How to Specify 3017

3017-[For Use][Exit Device]-[Door Hand]-[Finish]

Example: 3017-33-08-313

For Use
3	With Cyl.
9	W/O Cyl.

Exit Device
1	SVR
3	Mortise
6	CVR
7	Rim
9	None (Dummy)

Door Hand
07	RHR
08	LHL

Finish

628	(With R/C 130)
313	(With R/C 121)

EXIT DEVICES	CORBIN RUSSWIN

ED8200 Series Rim Device


UL listed for fire labeled or panic exit doors. Available for fire doors 3 hour rated (suffix A) & for a 1 1/2 hour rating (suffix B).

Door Thickness

1-3/4"

Handing

Field reversible

Latch Bolt

3/4" throw, stainless steel

Stile

Min. 5"

Bar Length

30" bar fits 28" - 36" door
36" bar fits 31" or 36" (standard).
42" bar fits 37" - 42" door.
48" bar fits 36" to 48" door.

Specify

W030 for 30"
W042 for 42"
W048 for 48"

Dogging

Hex key std. For less dogging specify M51. Not available in ED8200A & ED8200B.

ED8400 Series Vertical Rod Device

UL listed for fire labeled or panic exit doors.
Available for fire doors for 3 hour rated (suffix A).

Door Thickness

1-3/4"

Handing

Specify handing.

Door Height

7'6"

Stile

Min. 5"

Bar Length

30" bar fits 28" - 36" door
36" bar fits 31" or 36" (standard).
42" bar fits 37" - 42" door.
48" bar fits 36" to 48" door.

Specify

W030 for 30"
W042 for 42"
W048 for 48"

Dogging

Hex key std. For less dogging specify M51. Not available in ED8400A.

ED 8600 Series Mortise Device

UL listed for fire labeled or panic exit doors.
Available for fire doors for 3 hour rated (suffix A).

Door Thickness

1-3/4"

Handing

Specify hand.

Latchbolt

3/4" throw with deadlocking.

Stile

Min. 5"

Bar Length

30" bar fits 28" - 36" door
36" bar fits 31" or 36" (standard).
42" bar fits 37" - 42" door.
48" bar fits 36" to 48" door.

Specify

W030 for 30"
W042 for 42"
W048 for 48"

Dogging

Hex key std on the ED8600 & ED8600L. For less dogging specify M51. Not available in ED8600A & ED8600AL.

ED5200 Series Rim Device

UL listed for fire labeled or panic exit doors.
Available for fire doors (suffix A).

Door Thickness	1-3/4"
Handing	Field reversible
Latch Bolt	3/4" throw, stainless steel
Stile	Min. 4 1/2"
Bar Length	36" std. can be cut to 30" or 36" 48" optional. Can be sut to 36" to 48" (specify W048 when ordering).
Dogging	Hex key std. For less dogging specify M51. Not available in ED5200A.

ED5400 Series Vertical Rod Device

UL listed for fire labeled or panic exit doors.
Available for fire doors (suffix A).

Door Thickness	1-3/4"
Handing	Field reversible
Door Height	7"
Stile	Min. 4 1/2"
Bar Length	36" std. can be cut to 30" or 36" 48" optional. Can be sut to 36" to 48" (specify W048 when ordering).
Dogging	Hex key std. For less dogging specify M51. Not available in ED5400A.

ED5600 Series Mortise Device

UL listed for fire labeled or panic exit doors.
Available for fire doors (suffix A).

Door Thickness	1-3/4"
Handing	Field reversible
Latch Bolt	3/4" throw, stainless steel
Stile	Min. 4 1/2"
Bar Length	36" std. can be cut to 30" or 36" 48" optional. Can be sut to 36" to 48" (specify W048 when ordering).
Dogging	Hex key std. For less dogging specify M51. Not available in ED5600A.

ED5800 Series Concealed Vertical Device

UL listed for fire labeled or panic exit doors.
Available for fire doors (suffix A).

Door Thickness	1-3/4"
Handing	Field reversible
Door Height	8"
Stile	Min. 4 1/2"
Bar Length	36" std. can be cut to 30" or 36" 48" optional. Can be sut to 36" to 48" (specify W048 when ordering).
Dogging	Hex key std. For less dogging specify M51. Not available in ED5800A.

EXIT DEVICES	YALE

2100 Series Rim Exit Device

Grade 1.
UL listed for fire labeled or panic exit door.
For fire rated suffix item with Letter F
Example 2100F

Door Thickness	1-3/4" standard.
Door Width	36" standard 42" & 48". Field cut for narrower doors.
Minimum Style Width	4 1/2"
Handing	Easily field-reversible
Outside Trim	Baked enamel or plated trim functions.
Latch Bolt	3/4" throw deadlocking.
Finishes	BL-Bronze Lacquer. SB-Sprayed Aluminum.

2110 Vertical Rod Exit Device

Door Thickness	1-3/4" standard.
Door Width	36" standard 42" & 48". Field cut for narrower doors.
Door Height	7'2" standard. Up to 8' available.
Upper & Lower Bolt	3/4" throw upper latch Bolt 5/8" throw bottom deadbolt standard.
Minimum Style Width	4 1/2"
Handing	Easily field-reversible
Outside Trim	Backed enamel or plated trim functions.
Finishes	BL-Bronze lacquer. SB-Sprayed Alumninum.

For fire rated suffix item with Letter F. Example 2110F.

1500 Series Rim Exit Device

UL listed for fire labeled or panic exit doors.

1540	Rim Device
Handing	Non Handed
Door Width	36" standard, up to 48". Hex key dogging except fire devices per UL.
Latchbolt	4 13/16"
Minimum Stile	Field-reversible
Reversibility	Variety of sectional and escutcheon trims.
Finishes	26D
Non Stock	3, 4, 10, 10B, 26, 32D

1510 Series Surface Vertical Rod Exit Device

Handing	Field reversible.
Door Width	36" standard, or 48"
Upper Bolt	Deadlocking 3/4" throw.
Lower Bolts	Pullman latch 3/4" throw.
Minimum Stile	4 13/16"
Min. door thickness	1 3/4"
Door Height	7'2" standard. Up to 10'.

All 1500 Series can be cut in the field for odd door sizes.
To specify fire rated device change the first digit on the item number from 1 to 2.

Example	1510D is non fire rated. 2510D is fire rated.

1530 Series Mortise Devices

Handing	Not field reversible.
Backset	2-3/4"
Min. Stile	5"
Door thickness	1-3/4" standard.
Door width	36 standard. Up to 48" available.

1531	Mortise device for exit only. Cylinder retracts latchbolt.
1532	Mortise device. Use with thumb piece.
1533	Mortise device for use with working knob trim.
1534	Mortise device for use with rigid knob trim.

For lock body only
Device	Lock body	Hand
1531 2531	31	Handed
1532 2532	32	Handed
1533 2533	33	Handed
1534 2534	34	Handed

To specify fire rated decice change the first digit on item # from 1 to 2.

Example	1531 2531	Non fire rated Fire rated

To order lock body only.

Item	Finish	Hand
31	32D	RHR

Exit devices are only available for reverse bevel.

7000 Series Rim Devices

Non handed.
UL listed for fire labeled or panic exit doors.
Available for fire doors (suffix F) except 7200
For Fire Rated suffix item # with letter F
Example 7000F

Door thickness	1-3/4"
Latchbolt	Hinged, 3/4" throw. Deadlocking.
Dogging	Hex key except for fire devices per UL.
Finishes	3, 10, 32D
Non Stock	4, 10b, 26, 26D, 32

7000	Narrow cover - wood, hollow metal doors
7100	Wide cover - wood, hollow metal doors
7200	Narrow cover - Aluminum glass doors. 1-5/8" backset, narrow stile.

7030 Series Mortise Devices

Field reversible.
For Fire Rated suffix item # with letter F
Example 7030F

7030	Narrow cover for wood, hollow metal doors.
7130	Wide cover for wood, hollow metal doors.

Door thickness	1-3/4" min. Standard. Up to 2-1/4" available.
Latchbolt	3/4" throw, stainless steel, anti-friction.
Dogging	Hex key, except for fire devices per U.L.
Guarbolt	Stainless steel, deadlocks latchbolt.
Finishes	32D
Non Stock	3, 4, 10, 10B, 26, 26D, 32

7010 Series Vertical Rod Exit Devices

Surface Vertical Rod
Field reversible.
For Fire Rated doors suffix item # with F except 7210 series.
Example 7010F

Upper Latchbolt	Pullman style, 3/4" throw with automatic deadlatching.
Lower Latchbolt	5/8" throw. Lower deadbolt standard.
Dogging	Hex key except for fire devices per UL.
Finishes	3, 10, 32D
Non Stock	4, 10b, 26, 26D, 32

7010	Narrow cover - wood, hollow metal doors 2-3/4 back set
7110	Wide cover - wood, hollow metal doors 2-3/4 backset
7210	Narrow cover - Aluminum glass narrow stile 1-5/8" backset

7020 Series Concealed Vertical Rod Exit Devices

Concealed Vertical Rod
Same as surface vertical rod but rods are concealed in door.

7020	Narrow cover - Aluminum glass doors, 2 3/4" backset
7120	Wide cover - wood, hollow metal doors, 2-3/4" backset.
7220	Narrow cover - Aluminum glass doors, 1-5/8" backset, narrow stile.
